WAVEGUIDE COUPLERS

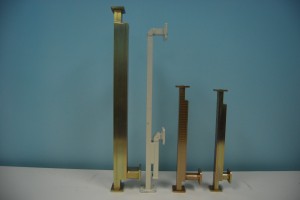

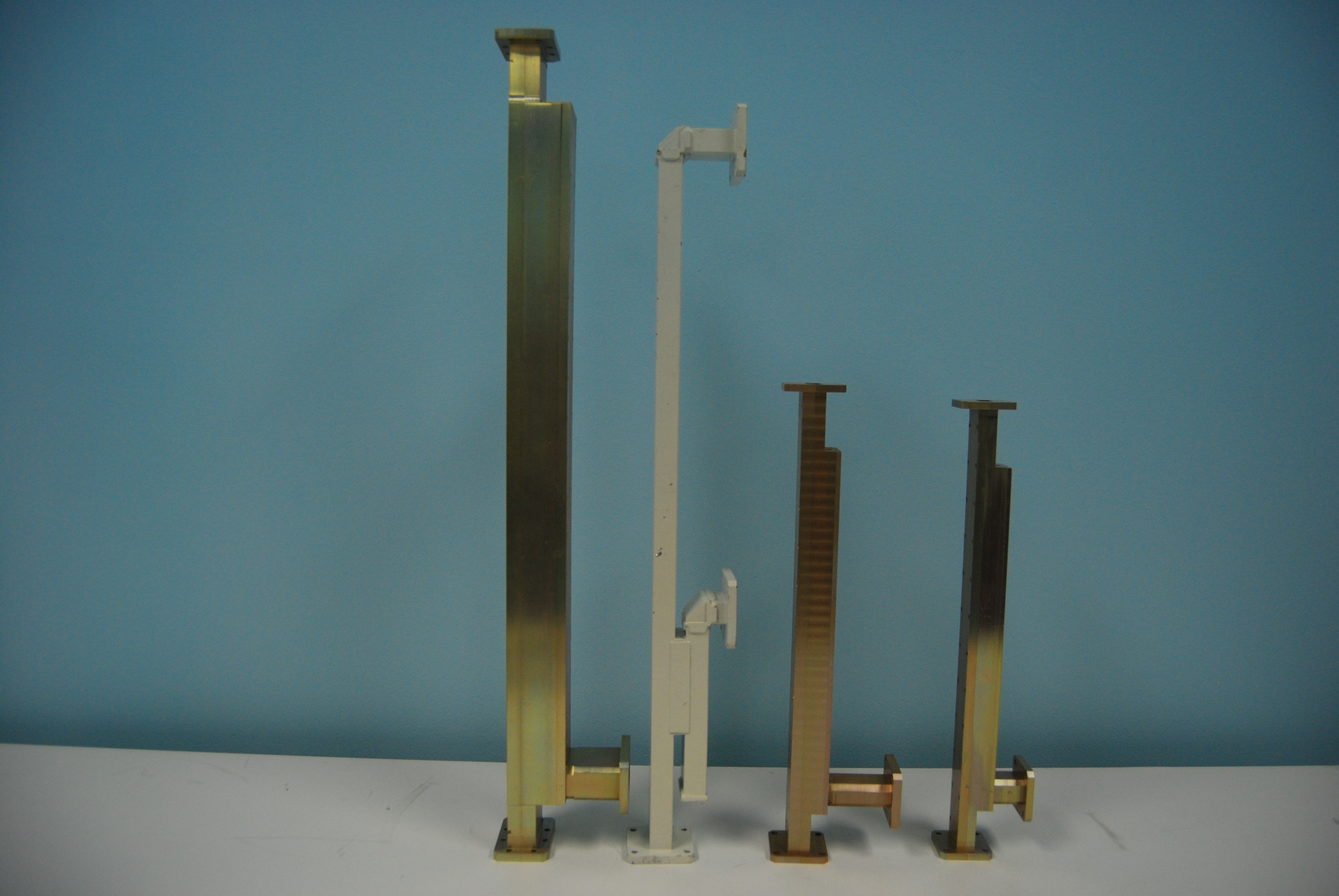

Mtechnologywave (MTW) Broadwall Couplers are ideally suited for precision Lab measurements tests where high directivity and minimum frequency sensitivity is needed.

The Tchebycheff arrays guarantee a directivity in excess of 40 dB over the full waveguide frequency range. MTW offers 6, 10 and 20 dB coupling values as standard products. Other values can be provided on request.

Other types of waveguide coupler are available on request, such as Narrow Wall Directional Coupler, Cross Guide Directional Coupler and Hybrid Couplers.

A  table of various standard models can be down loaded in pdf format below.

MTW WAVEGUIDE BROADWALL COUPLERS
